High Tensile Strength Self-Adhesive Bitumen Waterproof Membrane for Construction Leakage Material and Expansion Part

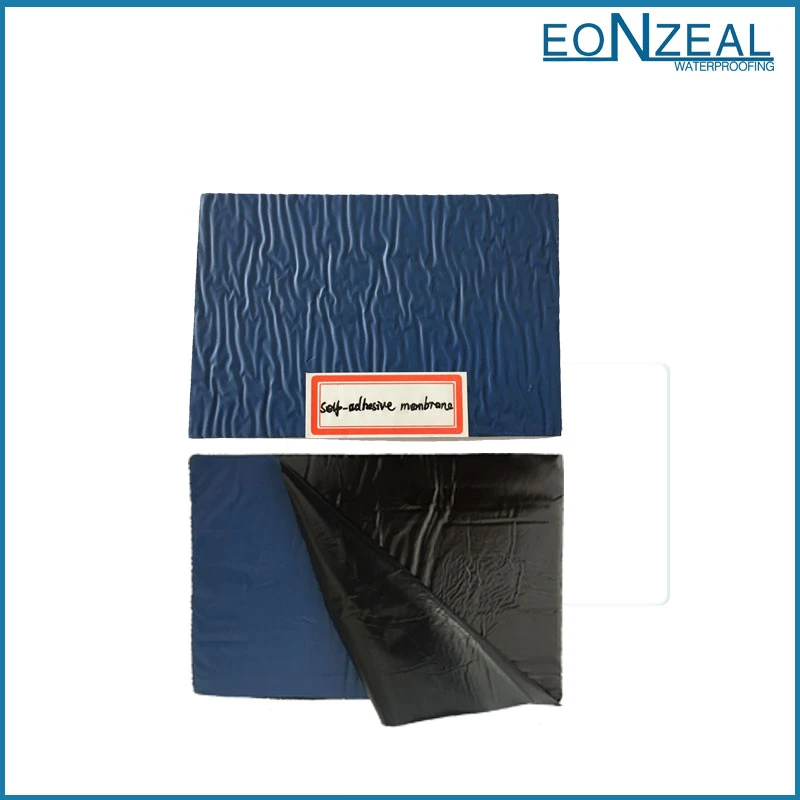

Cross laminated self-adhesive waterproof membrane
Cross laminated self-adhesive waterproof membrane
Description

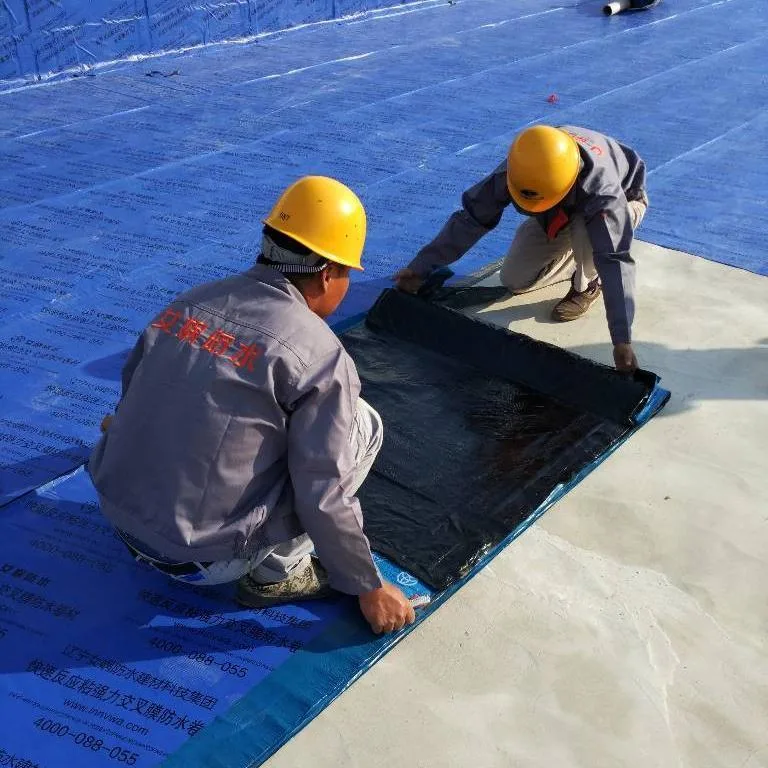

The Product is composed of cross laminated PE film, modified special rubberized asphalt and finished with isolation film to guarantee adhesive quality. Membrane can be applied with polymer cement mortar (wet applied method), also can be used directly (dry applied method).
Specification:
| Product Name | Type | Packing | Application technology |
| High strength cross film self-adhesive waterproof membrane | Single side adhesive Double side adhesive | Roll size: 1m*20m Thickness: 1.2, 1.5, 2.0mm | Wet applied Dry applied |
Structure
Technical Data Sheet
| No. | Test Item | Test Method | Result | Conclusion | |
| 1 | Peel Strength | ASTM D903-98(2017) | 3.0N/mm | / | |
| 2 | Puncture Resistance | ASTM E154/E154M-08a(2013)Section 10 | 558N | / | |
| 3 | Tear Strength | ASTM D624-00(2012) | Transverse | 45.7N/mm | / |
| Lengthways | 44.5N/mm | / | |||
| 4 | Tensile Strength | ASTM D882-12 | Transverse | 4350kN/m2 | / |
| Lengthways | 3750kN/m2 | / | |||
| 5 | T-Peel Strength | With reference to ASTM D1876-08(2015) and client's requirement | 1.07N/mm | / | |
| 6 | Water Absorption | ASTM D570-98(2010) | 0.07% | / | |
| 7 | Low temperature Flexibility | ASTM D1790/D1790M-15 Section 7.6 | No affection | / | |
Application
1. Underground construction, garage, planted roof, roof garden
2. Metro, tunnel, pool, roof
3. Corrosive and deformed structure
4. Warehouse, workshop etc
Features
1. Superior physical properties: high tensile strength, flexible seal around nails and cracks,compatible with different substrates.
2. Cold-applied: no flame hazard, self-adhered asphalt result in firm bonding and continuous overlapping
3. High performance cross laminated surface film: this ensures dimensional stability, high tear strength,puncture and shock resistance
4. Flexible and ease of use in detailed areas, together with other waterproofing
5. Convenience of repairing membranes: water won`t migrate even any leakage occurs due to firm bonding to substrate, so fast detecting of damaged membrane and immediate repairing.
Storage & Transportation
Different types and sizes of materials shall be stored separately, keep in sequence and avoid mess; Store materials in dry and ventilated condition, protect from sunshine, rain or other extreme environment; Storage temperature shall be less than 45ºC, the max height of stack is 5 layers. Prevent squeezing against membranes during transit, provide cover on top if necessary.
Dry Applied
