Freon to Water Condenser Heat Exchanger Condenser Heat Exchanger Manufacturers
Work Condition:
1)Refrigerant side: R22,R134a,R407c,R410a etc.
2)Water side: fresh water, nature water, drink water, seawater, saltwater, ground water etc .
Material:
1)Heat transfer Tube: 316L / SUS304 / Copper / Titanium
2)Shell: 316L / SUS304 / Carbon steel / PP / PVC
Model | Capacity | Water Flow | External Dimensions (mm) | Gas in | Gas out | Water in/out | TEMP Sensor | Drain port | N.W | |||||||||
| KW | m3/h | A | B | C | D | E | F | G | H | R | L | a | b | w1/2 | i1/2 | g | Kg | |
| WHB-5.0DKG | 11.6 | 2.0 | 660 | 170 | 90 | 500 | 130 | 400 | 60 | 200 | 35 | 35 | ¢22 | ¢19 | 50 | 3/8 | 25 | 29 |
| WHB-8.0DKG | 18.6 | 3.2 | 950 | 170 | 90 | 790 | 190 | 600 | 60 | 200 | 35 | 35 | ¢28 | ¢19 | 50 | 3/8 | 25 | 36 |
| WHB-10DKG | 23.2 | 4.0 | 1180 | 170 | 90 | 1020 | 350 | 600 | 60 | 200 | 35 | 35 | ¢28 | ¢19 | 50 | 3/8 | 25 | 40 |
| WHB-12DKG | 27.9 | 4.8 | 900 | 200 | 90 | 740 | 160 | 600 | 60 | 200 | 40 | 40 | ¢28 | ¢22 | 50 | 3/8 | 25 | 48 |
| WHB-15DKG | 35 | 6.0 | 1110 | 200 | 100 | 940 | 150 | 800 | 60 | 200 | 40 | 40 | ¢28 | ¢22 | 63 | 3/8 | 25 | 54 |
| WHB-20DKG | 46.5 | 8.0 | 1420 | 200 | 100 | 1250 | 370 | 800 | 60 | 200 | 40 | 40 | ¢38 | ¢22 | 63 | 3/8 | 25 | 64 |
| WHB-25DKG | 58.1 | 10.0 | 1460 | 225 | 100 | 1290 | 250 | 1000 | 60 | 200 | 43 | 43 | ¢38 | ¢28 | 63 | 3/8 | 25 | 78 |
| WHB-30DKG | 69.7 | 12.0 | 1360 | 250 | 100 | 1190 | 200 | 1000 | 60 | 260 | 53 | 53 | ¢38 | ¢28 | 63 | 3/8 | 25 | 95 |
| WHB-40DKG | 93 | 16.0 | 1720 | 250 | 110 | 1540 | 300 | 1200 | 60 | 260 | 53 | 53 | ¢54 | ¢28 | 75 | 1/2 | 25 | 115 |
| WHB-50DKG | 116.3 | 20.0 | 2120 | 250 | 110 | 1940 | 500 | 1200 | 60 | 260 | 53 | 53 | ¢54 | ¢28 | 75 | 1/2 | 25 | 136 |
| WHB-60DKG | 139.5 | 24.0 | 2030 | 280 | 110 | 1850 | 500 | 1200 | 60 | 260 | 65 | 60 | ¢76 | ¢38 | 75 | 1/2 | 25 | 168 |

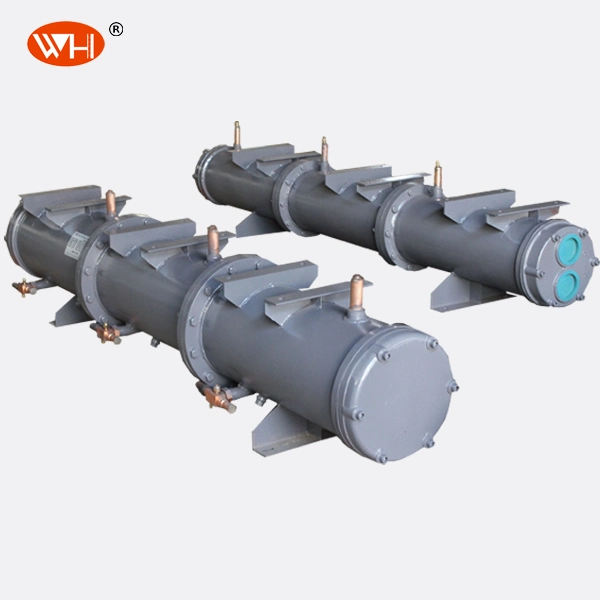

The combined pure titanium evaporator adopts the structure of upper and lower double barrels.The upper and lower barrels make internal diversion, so that the flow of chemical liquid changes direction.Also the cold and heat exchange is uniform.
The inner tube refrigerant adopts double in and double out, which makes the refrigeration effect better, the refrigerant flows smoothly, and the cold and heat exchange improves rapidly.

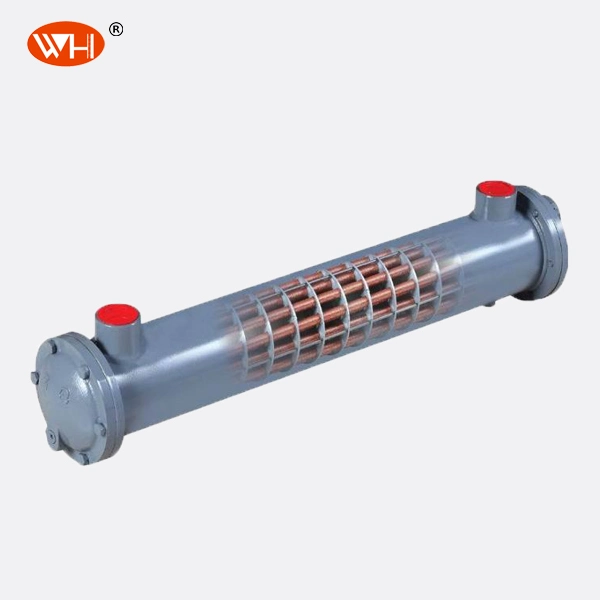

Removable Easy To Clean
You can take tube bundle out of shell, it can be easily claned.
The spiral baffle makes the shell side fluid flow in a continuous spiral shape.
Wuxi New Wuhuan Engery Saving Technology Co.,Ltd.designs and manufactures a wide range of heat exchangers for refrigeration, industrial and special applications .Our evaporators and condensers can be manufactured with different materials and can work with all types of fluids and with duty up to 6000 kW. We are prepared for the solution of different heat exchange problems, thanks to the widest experience of technical departments able to suggest technical solutions best suited to each customer's need.
FAQ:
1.Are you factory?
Yes,we are one of the largest corrosion resistant heat exchanger manufactory in China.
2.Are there any discount for the heat exchangers?
Yes. Bigger quantity will enjoy lower discount!
3.What information needed if I want a quotation?
Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out ,Refrigrant Freon Type, Quantity, or any requirements in size.
4.What is the MOQ?
We accept loose quantity order,mixed order,any trial orders.
5.When can I get the price?
We usually quote within 8 hours after we get your inquiry.
