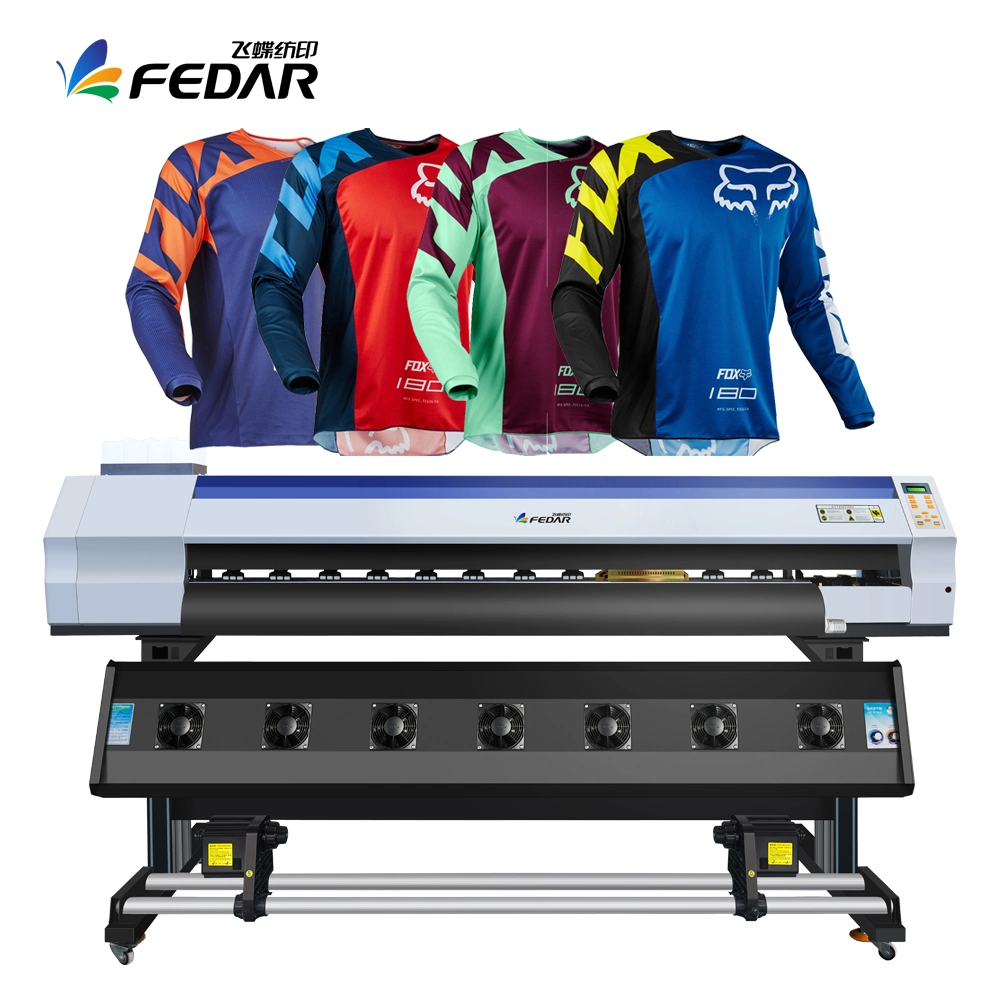

Large Format Fedar Fd1900 Transfer Paper Printing Machine Dye Sublimation Printer with Great Price

Fedar FD1900 Wide Format Dye Sublimation PrinterFedar FD1900 Dye Sublimation Printer uses double Epson 3200 printing heads. Max Printing Width: 1900mm. Max Resolution: 3200DPI. Max Printing Speed: 2pass: 98 Sqm/Hr.Characteristics of FD1900 Double Epson I3200-A1 Heads Dye Sublimation PrinterServo Motor: LEADSHINE (Famou

Featured Products

Fedar FD1900 Wide Format Dye Sublimation Printer
Fedar FD1900 Dye Sublimation Printer uses double Epson 3200 printing heads. Max Printing Width: 1900mm. Max Resolution: 3200DPI. Max Printing Speed: 2pass: 98 Sqm/Hr.
Large Format Fedar Fd1900 Transfer Paper Printing Machine Dye Sublimation Printer with Good Price

Characteristics of FD1900 Double Epson I3200-A1 Heads Dye Sublimation Printer

  • Servo Motor: LEADSHINE (Famous Brand in China)
  • Guide Line: HIWIN (Famous Brand in China) or THK (Famous Brand in Japan)
  • Cartridge: Original Import (Clean, Pump and Moisturize Automatically)
  • Main Board: Design and Produced by ourselves, it is stability and 15Months Warranty time
  • Ink Supply System: Bulk Ink Continues Supply System.

TECHINICAL DATA

ModelFedar FD1900 Dye Sublimation Printer
Printing Size1900mm
Printhead Type and Numbers2 EPSON Original I3200-A1 Heads
Max Resolution3200DPI
Max Materials Input Size2000mm
Ink ColorDouble C M Y K
Ink TypeWater-Based Ink, Pigment Ink
Ink Supply TypeBuIk Ink System
RIP SoftwareMAINTOP6.0, PHOTOPRINT, ONYX, NEOSTAMPA
InterfaceGigabit Port
Print File FormatBMP, TIF, JPG, PDF Etc.
Drying SystemExtra Front Heating System
Materials Feeding MethodRoll to Roll, Leaf
Color ManagementICC Based; Density & Curves Adjustable
Power Supply50HZ/60HZ, 220V, 10A
Package Dimension (L*W*H)3060*940*970mm
Gross. Weight240KGS
Working Environment Temperature20C-35C (68F-95F)
Working Environment Humidity35%-65%Rh
Printing Speed2pass: 98 Sqm/Hr
3pass: 64 Sqm/Hr
4pass: 50 Sqm/Hr

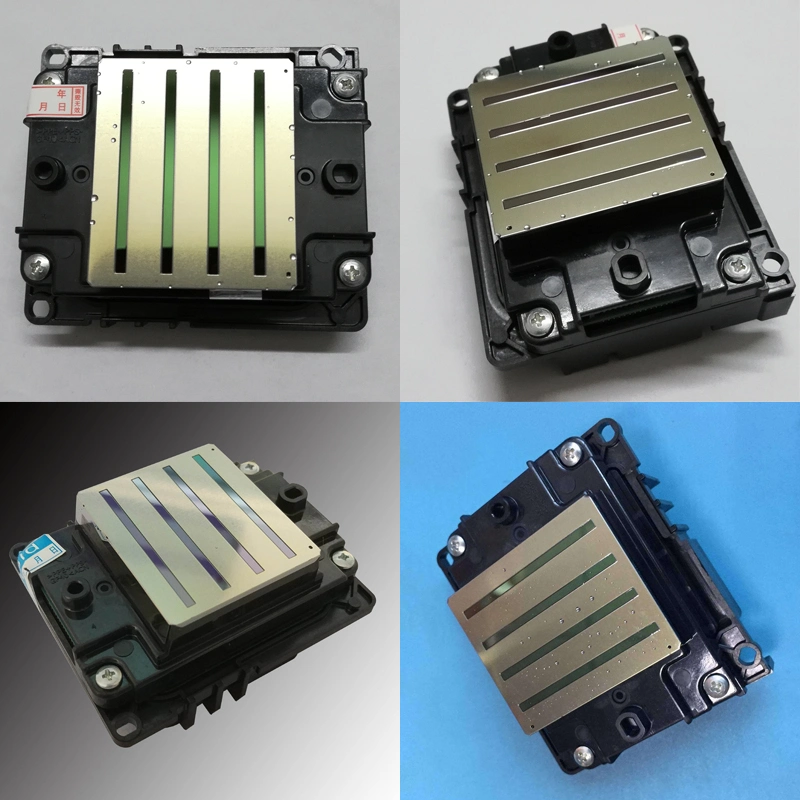

1. PRINT HEAD
Fedar FD1900 Dye Sublimation Printer uses double Epson 3200 printing heads. Its nozzle has 4 pairs of nozzle holes, a total of 8 columns, each column has 400 nozzle holes, that is totally including 3200 nozzle holes, max resolution: 3200DPI. The printing speed can be more than 98Sqm/h, It uses TFP thin film piezoelectric technology and 2.5PL variable dot ink drop function, accurately positioning the ink drop, the image color layer is richer and fuller, and the printing effect is more exquisite. The Epson3200 head adopts automatic cleaning and automatic flash spray function to prevent blockage.
Large Format Fedar Fd1900 Transfer Paper Printing Machine Dye Sublimation Printer with Good Price


2. CAPPING STATION
FD1900 Dye Sublimation Printer equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient. The working principle of the automatic ink cleaning function: the digital printing machine draws the ink through the nozzle of the ink pump in the ink stack to achieve the purpose of cleaning and moisturizing, preventing the nozzle from clogging.

Large Format Fedar Fd1900 Transfer Paper Printing Machine Dye Sublimation Printer with Good Price
3. PRINT CARRIAGE

The height of the double-head nozzle independently developed can be adjusted arbitrarily, and it can flexibly respond to different thicknesses of printing materials. The anti-scratch-paper function on both sides of the small frame can reduce the damage of the nozzle caused by the paper tilting.

Large Format Fedar Fd1900 Transfer Paper Printing Machine Dye Sublimation Printer with Good Price
4. HIGH-PRECISION PALTFORM

The assembly precision of the machine printing platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.

Large Format Fedar Fd1900 Transfer Paper Printing Machine Dye Sublimation Printer with Good Price
5. INK TANK

FD1900 Dye Sublimation Printer uses four 3L super-large-capacity ink tank with independent and continuous ink supply. The powerful continuous supply ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.
Large Format Fedar Fd1900 Transfer Paper Printing Machine Dye Sublimation Printer with Good Price


6. INTELLIENT INK SHORTAGE ALARM SYSTEM
Intelligent ink shortage system reminding, reduces the tediousness of frequently checking the remaining ink, and promptly reminds to add ink to ensure the continuity of printing work.

Large Format Fedar Fd1900 Transfer Paper Printing Machine Dye Sublimation Printer with Good Price
7. STABLE FEDAR SELF DESIGN PRINTING SYSTEM

The core components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.

Large Format Fedar Fd1900 Transfer Paper Printing Machine Dye Sublimation Printer with Good Price

8. INTELLIGHT INFRARED DRY SYSTEM
FD1900 sublimation printer synchronized with printing, energy saving and emission reduction, the temperature can be adjusted according to the actual situation during printing.
Large Format Fedar Fd1900 Transfer Paper Printing Machine Dye Sublimation Printer with Good Price

Remote Assistance:
Free, customers can reserve from sales department in advanced.
Warranty:
15Months warranty time for our printers. In the warranty time, if the parts are broken without man-made sabotage. You can send back the broken spare parts to repair or replace. Beyond warranty time, for broken parts just need cost price.
Large Format Fedar Fd1900 Transfer Paper Printing Machine Dye Sublimation Printer with Good Price
Technical Supporting:
We can send our technician to your site to provide technology supporting and training your operators. It is also acceptable for you sending your operators to our factory for training.


Package and Shipping:
Package Used Wooden Box without Fumigation
Large Format Fedar Fd1900 Transfer Paper Printing Machine Dye Sublimation Printer with Good Price
The package would include spare parts box and setting up machine tools.
Transportaiton By Sea or By Air are both Acceptable.
