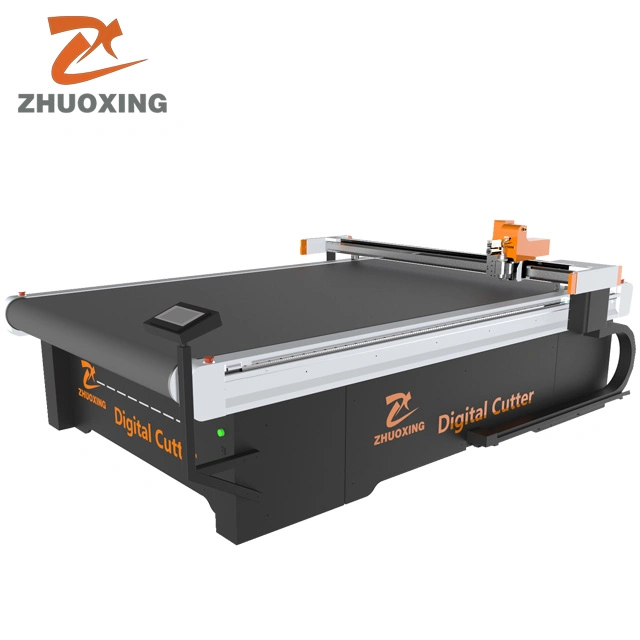

Sticker Cutter CNC Oscillating Knife Automatic Cutting Machine Precise Positioning with High Speed
Machine advantages
Zhuoxing's CNC oscillating knife cutting machine, your professional choice for cutting 5D/7D car mat.
Our machine recognize DXF/PLT format from computer, dieless cutting supply the most flexibility, it can cut any shapes and sizes quickly and perfectly.
Also, there's no need for the machine to rest or cooling, 24 hours continuous and efficient working is promised.
It can cut low-layers at one time, or cutting unlimited in length with auto feeding and cradle.
Physical cut don't react with materials, so no smoke and smell will produce during cutting.
Our machine is easy to learn and operate.
Future maintain is easy and safe.
Detailed Images
Machine Parameter
Our sample
Packing & Delivery
Our Company
Zhuoxing supply an automated, computerized cutting systems cut with accuracy and repeatability and have been engineered for single, low-ply cutting requirements.
Precision cutting tools offer the utmost flexibility for hundreds of soft and some hard-to-cut material applications in various industries, such as Garment; Shoes & Accessories; Gasket; Packaging; Advertising; Home furnishing; Automotive Interiors; Arts & Crafts; Toys; Sporting goods; Camping & Outdoor gear, etc.
Zhuoxing supply the ideal solution for prototyping, short-run production and full production runs, tackling down challenges of customization and fast delivery.
We have had great success in China, and will be powered by innovation and uncompromising standards in the future.
Certificate
FAQ
Q: 1. How can I choose the suitable car mat cutting machine?
A: Please provide us some info, then we can recommend you the suitable machine:
1)What materials are going to cut? Are they rolled or not? Breathable or not?
2)What's the largest size of original materials?
3)What's the thickness of materials?
4)Excepting for cutting, do you need more functions, like drawing, punching holes, scanning, feeding, CCD camera, etc.?
Q: 2. Can you design a car mat cutting machine for me depending on my requirements?
A: Of course, we will give our professional suggest and discuss details with you for the machine which can match your request and with best cost performance.
Q: 3. What should I do if the car mat cutting machine has any problem in future?
A: We supply online/phone technical support and door to door service. Anything confuse or not goes well, you can contact us.
Q: 4. What's the warranty policy?
Standard warranty is 12 months upon delivery.
Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period.
Problems caused by wrong operate will also well-solved, but not for free.
We also supply life long after-sales service. No matter when, you can guarantee our best service for your machine.
Q: 5. If I don't know this car mat machine before, how can I operate it?
A: We supply face to face training and provide operating video, user manual, and telephone calls to help.
It's easy to learn, one inexperience people can learn it within one day.
Machine advantages
Zhuoxing's CNC oscillating knife cutting machine, your professional choice for cutting 5D/7D car mat.
Our machine recognize DXF/PLT format from computer, dieless cutting supply the most flexibility, it can cut any shapes and sizes quickly and perfectly.
Also, there's no need for the machine to rest or cooling, 24 hours continuous and efficient working is promised.
It can cut low-layers at one time, or cutting unlimited in length with auto feeding and cradle.
Physical cut don't react with materials, so no smoke and smell will produce during cutting.
Our machine is easy to learn and operate.
Future maintain is easy and safe.
Detailed Images
Machine Parameter
| Model no. | ZX-2516VA | ||
| Working area | 2500×1600 mm(L*W) (accept customization) | ||
| Machine size | 3355x2410x1250 mm(L*W*H) | ||
| Cutting thickness | 0.1-25.0 mm (depend on material) | ||
| Cutting precision | 0.1mm | ||
| Max cutting speed | 1200 mm/s (depend on material) | ||
| Transmission interface | Ethernet | ||
| Rated power | 11KW | ||
| Working voltage | AC 110V 220V 380V±10%, 50HZ | ||
| Fixed type | Intelligent vacuum adsorption | ||
| Drive system | Servo motor, linear guide rail, rack and pinion | ||
| Safety device | Infrared sensors, 4 emergency stop buttons | ||
| Control panel | Liquid crystal display | ||
| Cutting extent | Through-cut | ||
| Standard configuration | Oscillating cutting tool, red light pointing, auto feeder | ||
| Optional configurations | Driven rotary cutting tool, punching tool (V-shape or circle shape), drawing tool, CCD camera, scanner, cradle(auto or normal), package box | ||
| Operating characteristic | Work offline; 24 hours continuous and efficient working | ||
Our sample
Packing & Delivery
Our Company
Jinan Zhuoxing Intelligent Technology Co.,Ltd.
Jinan Zhuoxing Intelligent Technology Co. Ltd is a high-tech enterprise which is specialized in research and development, production, sales and service of CNC knife cutting equipment and related CAD/CAM software system.Zhuoxing supply an automated, computerized cutting systems cut with accuracy and repeatability and have been engineered for single, low-ply cutting requirements.
Precision cutting tools offer the utmost flexibility for hundreds of soft and some hard-to-cut material applications in various industries, such as Garment; Shoes & Accessories; Gasket; Packaging; Advertising; Home furnishing; Automotive Interiors; Arts & Crafts; Toys; Sporting goods; Camping & Outdoor gear, etc.
Zhuoxing supply the ideal solution for prototyping, short-run production and full production runs, tackling down challenges of customization and fast delivery.
We have had great success in China, and will be powered by innovation and uncompromising standards in the future.
Certificate
FAQ
Q: 1. How can I choose the suitable car mat cutting machine?
A: Please provide us some info, then we can recommend you the suitable machine:
1)What materials are going to cut? Are they rolled or not? Breathable or not?
2)What's the largest size of original materials?
3)What's the thickness of materials?
4)Excepting for cutting, do you need more functions, like drawing, punching holes, scanning, feeding, CCD camera, etc.?
Q: 2. Can you design a car mat cutting machine for me depending on my requirements?
A: Of course, we will give our professional suggest and discuss details with you for the machine which can match your request and with best cost performance.
Q: 3. What should I do if the car mat cutting machine has any problem in future?
A: We supply online/phone technical support and door to door service. Anything confuse or not goes well, you can contact us.
Q: 4. What's the warranty policy?
Standard warranty is 12 months upon delivery.
Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period.
Problems caused by wrong operate will also well-solved, but not for free.
We also supply life long after-sales service. No matter when, you can guarantee our best service for your machine.
Q: 5. If I don't know this car mat machine before, how can I operate it?
A: We supply face to face training and provide operating video, user manual, and telephone calls to help.
It's easy to learn, one inexperience people can learn it within one day.
