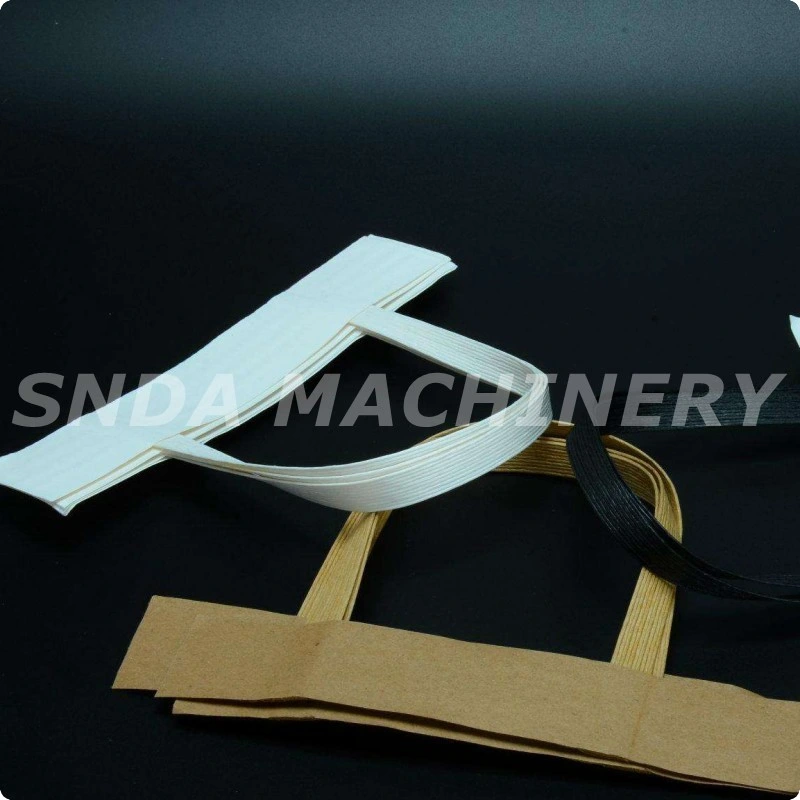

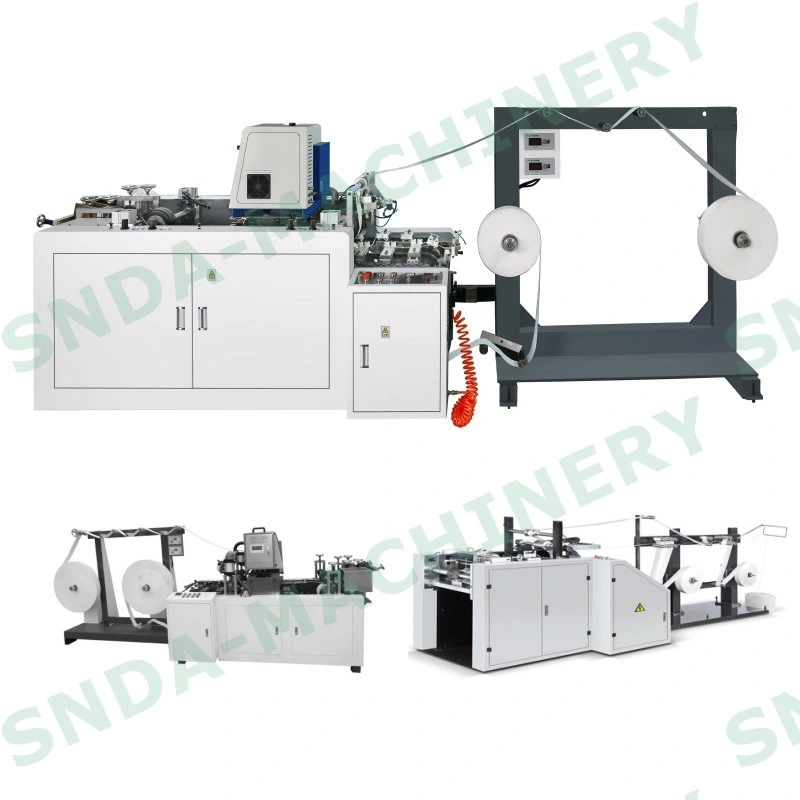

This machine is mainly supporting semi-automatic paper bag machines. It can quickly produce paper handle with twisted rope,which can be attached onto the paper bag without handles in further production and make it into paper handbags.This machine include rope rewinding machine,loop pasting machine,twisted rope making machine.

Feature

The main technical parameters
Paper Roll Core Diameter    76mm(3")
Max.Paper Roll Diameter     1000mm
Production Speed                 10000pairs/hour
Power Requirements             380V
Total Power                            7.8kw
Total Weight                           Appr.1500kg
Overall Dimension                 L4000*W1300*H1500mm
(A) Paper Length                   120-190mm(Optional)
(B) Paper Rope Handle Spacing 60-95mm(Optional)
(C) Paper Width                     30/40mm
(D) Paper Rope Height           100mm
Paper Rope Diameter             3.0-4mm
Glue Type                               Hot-melt glue
